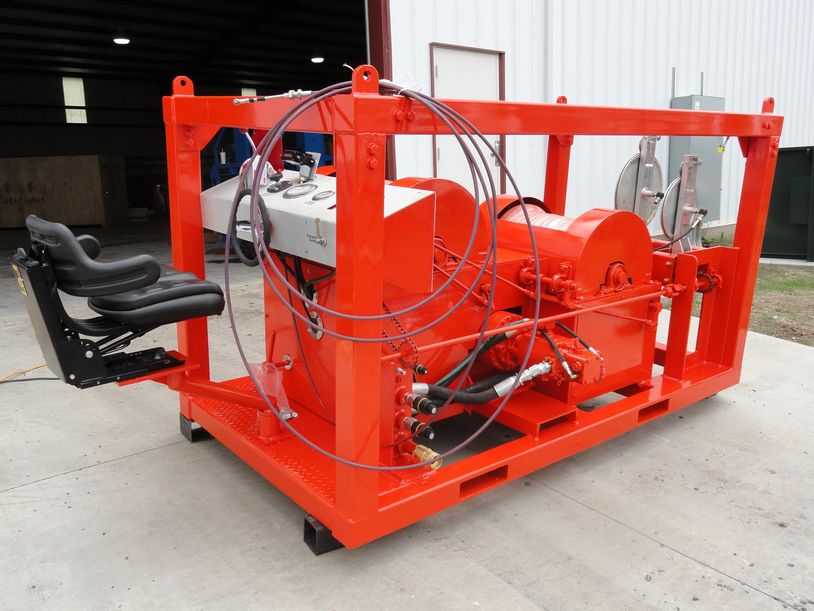

Double Drum / Dual Skid Wireline Unit

---

 Unit Specifications:

Skid Mounted for Zone II Service Double drum hydraulic Wireline winch

Surveyor II drums based on 30,000 ft - .108 wireline

Max Line speed at OD 15 FPM

Max Pull at OD 5500 lbs

Millennium measuring heads for .108” and .125 wire to measure depth in feet

Directional Control Valve Remote

Control pressure relief valve to control the line pull

Weight indicator with load cell and 50 ft of hydraulic hose and its accessories

Hydraulic power pack for double drum Wireline winch

Rated HP 80 – 90 Closed loop system

Variable displacement hydraulic pump and motor

Capable of stable logging/mplt at ultra-low speeds

Capable of fast acceleration at extremely high speeds

Four Speed Transmission

Minimum 20 ft. length power and return fluid hose with check valve connections

Inlet flame trap

Inlet air shutdown valve by engine

Over-speed Fuel supply shutdown

Plastic bladed fan Anti-static fan belt

Exhaust spark arrester

Exhaust gas cooler

Exhaust flame trap

Accessories:

 20,000 ft - .108" - 3/16" stainless steel wireline installed on small drum

20,000 ft - .125" - 3/16" stainless steel Wireline installed on large drum

12” Hay Pulley Assembly with full swivel mounting eye and side loading safety latch

Frame is of billet aluminum for greater strength and lighter weight

12" diameter wheel

108 & .125 will be carburized for longer life

Floor sheeve stand for above

Line wiper with mounting bracket

Wireline clamp

Weight indicator with 50 feet of hydraulic hose between dial and load cell

Dial will be installed at operator’s console

Load cell and hose storage rack will be installed
