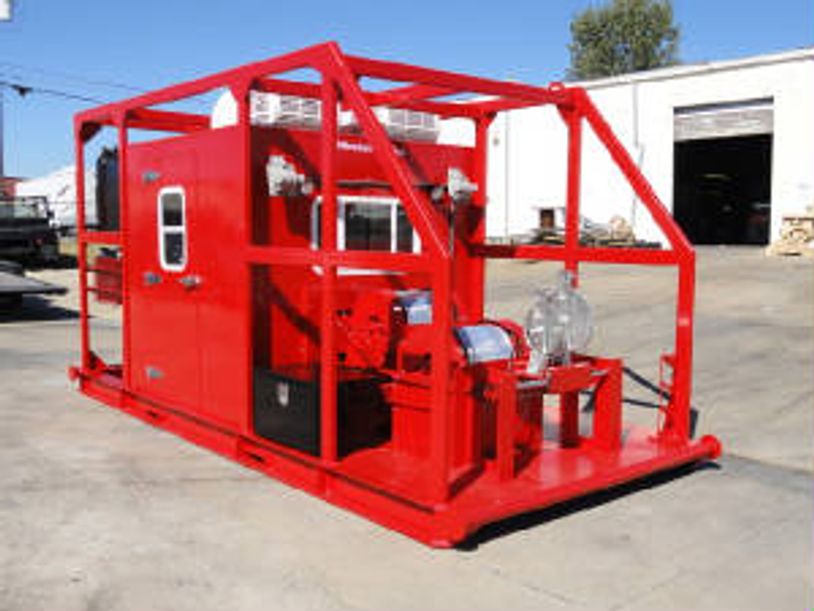

Double Drum Skid Mounted Unit - Operators Cabin
Unit Specifications:
Double Drum assembly to be of all steel, non-cast, construction
8" core diameter
15 5/8" I.D. between the flanges
20" diameter OD flanges
One with the Capacity of 25,000 ft - .125" SS Wireline
One with the Capacity of 25,000 ft - .108" SS Wireline
A large diameter drum shaft with pillow block bearings each end will be incorporated.
Dual Brake assembly to be of dual wide brake band construction offering good stopping, holding, and heat dissipation characteristics.
A high leverage mechanical brake lever will be installed convenient to the operator.
Drive assembly will be having chain and sprocket design with a tensioning system.
A Funk four speed transmission will be coupled to a planetary transmission which will be driven by a hydraulic motor.
Dog clutch assembly will be used for shifting between the drums.
Power drive assembly will be by a Perkins 1106-6 diesel engine.
12v start & charging system
Heavy duty cooling system w/suction fan & guards
Dry element remote mount air filter
SAE #3 flywheel housing w/11.5" flywheel
Front and rear mounting support
Electric fuel pump
Electronic engine control
Murphy Power View panel
Spark arrestor
Engine monitoring gauges
Safety shutdown system for high engine temperature and low oil pressure
Variable throttle
Pump drive adaptor
Fuel tank of 30-gallon capacity
The engine will drive the hydraulic pump
Hydraulic assembly will be of open loop design with 2000 psi working pressure.
A rugged duty variable displacement pump and fixed displacement motor will be installed.
Controls will be by a directional/speed control and a remote relief valve as well as a dump valve.
Safety type pressure gauges will be installed, one to monitor the system charge pressure and one to monitor the system working pressure.
Hydraulic fluid will be supplied from a large capacity reservoir with breather/strainer filler cap and a sight level/temperature gauge.
A hydraulic oil cooler will be installed to aid the reservoir in cooling of the hydraulic fluid.
A complete filtration system will be installed.
All hoses and fittings will be sized for maximum flow.
Spooling assembly will be by an underarm steering arm with a mechanical steering system.
A steering wheel will be installed at the operator's console.
A measure meter for .125" wireline, footage measure, will be installed onto the steering assembly.
A mechanical depth counter will be installed and will be cable driven from the register wheel.
The depth counter will be installed at the operator's console.
Weight indicator load cell will install onto the measure meter and will be activated when a load is put on the wireline.
Approximately 15 foot of hose will be installed between the load cell and the dial.
The dial will be installed at the operator's console.
Weight Indicator must be selected from accessories at additional cost.
Operator's cabin will be of all aluminum construction with 2" square tubing framework for longer life and more rugged construction.
The approximate dimensions of the cabin will be 6' front to back x 7' wide x 6-1/2' high.
Dimensions are interior measurements.
The cabin will be well insulated to a high R factor and the walls and ceiling will be light colored FRP material.
The floor will be covered with aluminum tread plate unless otherwise requested by the customer.
A wide entry access door will be installed to the left of the drum assembly.
Heavy duty hinges and a refrigerator type latch will be installed.
Accommodations will be made to lock the entry door.
A large, safety glass, will be installed over the drum assembly and will offer good visibility of the drum assembly and measuring meter.
Opening windows will be installed at entry door and opposite wall of the cabin to aid in ventilation.
A well-padded operator's seat with back rest and adjustable, swiveling design will be installed conveniently to the operator's console.
The seat will be of fixed design bolted to the floor.
A well-padded observer's bench will be installed across the rear of the cabin and will have a storage compartment under.
A small work desk will be installed opposite the entry door and along the side wall.
Storage compartment with shelves will be installed.
Operator's console will be of stainless-steel construction and will be installed inside the cabin and just behind the drum assembly.
All controls, gauges, and switches will be installed with operator safety, comfort, and efficiency in mind.
Climate control will be by a hot water heater with variable DC control. 2 A/C air conditioners will be installed on the roof.
The heater will be installed under the observer's bench.
Lighting will be of 12-volt DC & 110-volt AC operation and will be interior of the cabin and exterior corners of the drum assembly, one either side to illuminate the drum assembly.
8500-watt diesel quiet gen set will be installed for electric service.
Mounting will be on a channel construction skid, of compact design, with drag pipes each end and protective lift rigging around the skid.
Forklift pockets will be at side of the skid and four-point lifting eyes will be installed around the skid.
The different handling arrangements make for a versatile and safe method of handling as the wireline unit is expected to be moved and handled frequently.
Drip pan will be under the engine area and the drum area.
A tool storage box of steel construction, as requested, will be installed onto the skid beside the drum area. The approximate dimensions of the toolbox are to be 3' long x 2' wide x 2' high.
Corrosion resistant hinges and pad locking method will be incorporated.
Lube rack will be installed opposite the toolbox.
Performance testing will be to MWI strictest standards
Safety guards and panels will be installed as may be required.
Routine maintenance will be made easy.
Paint will be Millennium Wireline Tan unless specified by customer.
Any striping or lettering that may be required will be at additional cost.
Two sets operation, parts, and maintenance manuals will be supplied with the equipment.
All material used in the manufacture of this product will be of new and recent manufacture.
