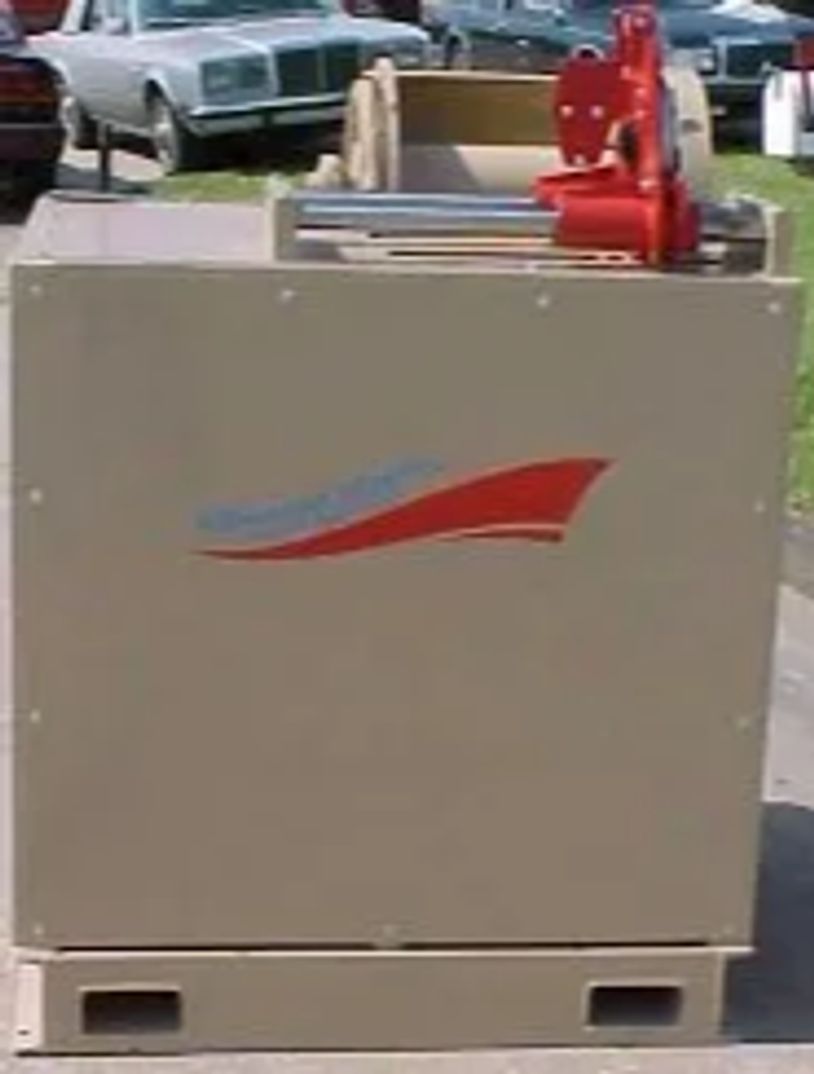

Retriever Wireline Unit

---

The Retriever Wireline Unit is a proven design. This unit is a compact self-contained electric powered winch designed with economical drilling rig applications in mind. All the components including the hydraulic reservoir are installed within the frame for protections. This unit incorporates all explosion proof motor and controls and is also available in a rig powered version. Factory installed level wind can extend wireline life. Operating controls are located behind the unit away from the fastmoving wire. This gives the operator a full view of activity around the rig floor. The smaller footprint makes spotting and operating this unit easier.

Drum Capacity:

15,000 ft - .092"

18,000 ft - .082"

21,000 ft - .072"

Drum Material:

Non-cast all steel

Brake Assembly & Control:

Dual wide band

Operator adjustable handle

Drive Assembly:

Direct drive with dog clutch

Power Supply:

15 hp electric motor

Explosion proof

460 volt / 3 phase / 60 Hz (50 Hz available)

Service & Certifications:

Class 1 / Group D / Division 1

UL / CSA

Hydraulic System:

Open loop system

2,000 psi Working pressure

3,000 psi Intermittent duty pressure

40 gal Reservoir

Wire Pull & Line Speed:

1,000 lbs

650 fpm
