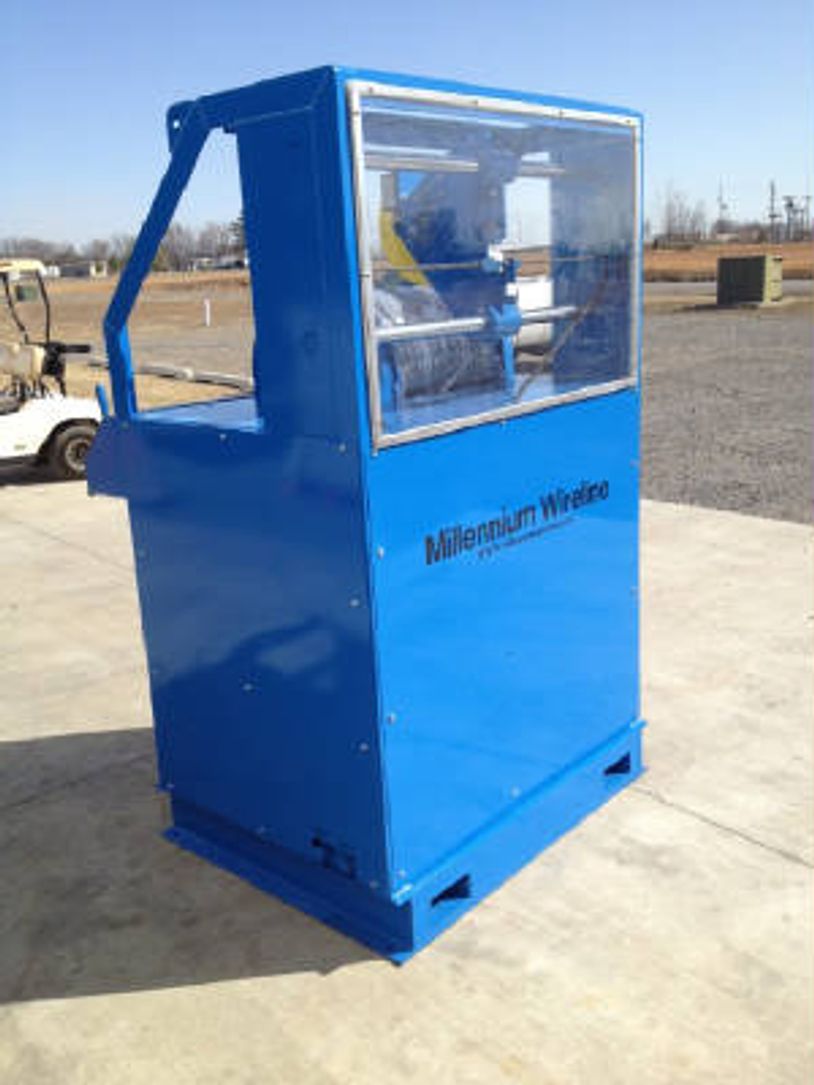

Rig Powered Upright Surveyor Unit

---

 The Rig Powered Upright Surveyor Unit is a work horse on our customers Drilling Rigs. While similar in design to our smaller units, it has much more line capacity as well as increased horsepower giving more pulling power and greater

line speeds. This is a high-performance unit that will get the job done. It is powered by external open loop hydraulic power source.

Drum Capacity:

15,000 ft - .125"

20,000 ft - .108"

25,000 ft - .092"

Drum Material:

Non-cast all steel

Brake Assembly & Control:

Dual wide band

Operator adjustable handle

Drive Assembly & Transmission:

Chain and sprocket with tensioner

Three speed with reverse

Power Supply & Hydraulics:

Rig powered hydraulics

Speed controls

Open loop

2,000 psi Normal working pressure

Wire Pull / Speed / Spooling:

3,800lbs

1,250 fpm

Manual level wind
