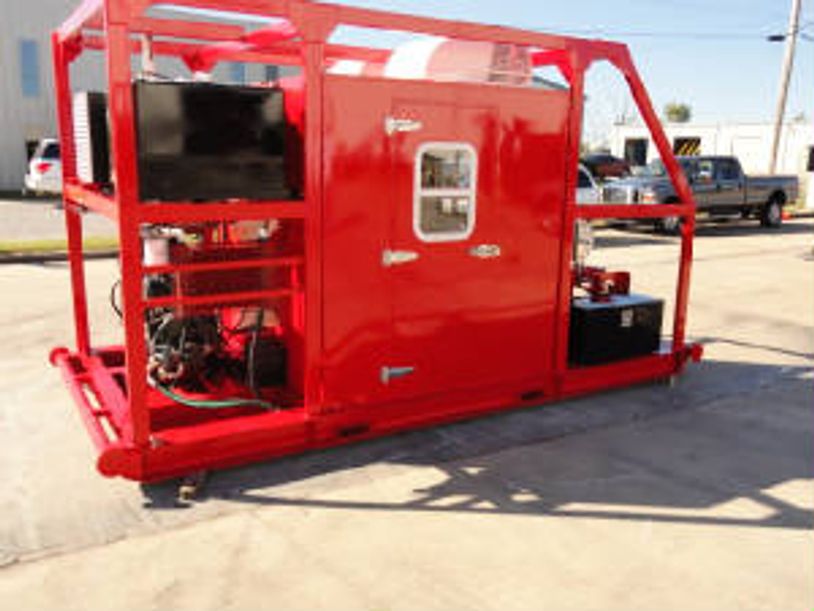

Unit Specifications:
Drum assembly to be of all steel, non-cast, construction
8" core diameter
15 5/8" I.D. between the flanges
20" diameter OD flanges
Capacity of 20,000 ft - .125 " SS wireline
A large diameter drum shaft with pillow block bearings incorporated on each end
Brake assembly is a dual wide brake band construction offering good stopping, holding, and heat dissipation characteristics
A high leverage mechanical brake lever will be installed convenient to the operator
Drive assembly will be a chain and sprocket design with a tensioning system
A four-speed transmission will be coupled to a planetary transmission driven by a hydraulic motor
Power drive assembly will be a Perkins 1104 diesel engine
12v start & charging system
Heavy duty cooling system w/suction fan & guards
Dry element remote mount air filter
SAE #3 flywheel housing w/11.5" flywheel
Front and rear mounting support
Electric fuel pump
Electronic engine control
Murphy Power View panel
Spark arrestor
Engine monitoring gauges
Safety shutdown system for high engine temperature and low oil pressure
Variable throttle
Pump drive adaptor
30 gallon fuel tank
The engine will drive the hydraulic pump
Hydraulic assembly will be of open loop design with 2000 psi working pressure
A rugged duty variable displacement pump and fixed displacement motor will be installed
Controls will be a directional/speed control and a remote relief valve as well as a dump valve
Safety type pressure gauges will be installed, one to monitor the system charge pressure and one to monitor the system working pressure
Hydraulic fluid will be supplied from a large capacity reservoir with breather/strainer filler cap and a sight level/temperature gauge
A hydraulic oil cooler will be installed to aid the reservoir in cooling of the hydraulic fluid
A complete filtration system will be installed
All hoses and fittings will be sized for maximum flow
Spooling assembly will be by an underarm steering arm with a mechanical steering system
A steering wheel will be installed at the operator's console
A measure meter for .125" wireline and footage measure will be installed onto the steering assembly
A mechanical depth counter will be installed and will be cable driven from the register wheel
The depth counter will be installed at the operator's console
Weight indicator load cell will install onto the measure meter and will be activated when a load is put on the wireline
Approximately 15 foot of hose will be installed between the load cell and the dial
The dial will be installed at the operator's console
Weight Indicator must be selected from accessories at additional cost
