Surveyor I Wireline Unit

---

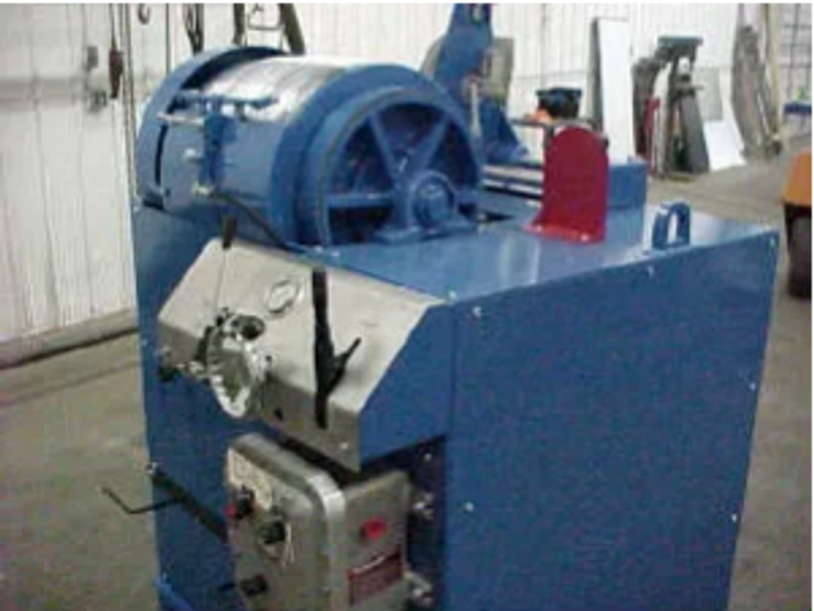

The Surveyor 1 Wireline Unit is a work horse on our customers drilling rigs. While similar in design to our smaller units, it has much more line capacity as well as increased horsepower giving more pulling power and greater line speeds. This is a high-performance unit that will get the job done.  It can be powered by external electrical or open loop hydraulic power sourced. The motor and controls are explosion prof with UL/CSA approval.

Drum Capacity:

16,000 ft - .125"

22,000 ft - .108"

30,000 ft - .092"

Drum Material:

Non-cast all steel

Brake Assembly & Control:

Dual wide bands

Operator adjustable handle

Drive Assembly & Transmission:

Chain and sprocket

Three speed with reverse

Power Drive Assembly:

25 hp 460 volt / 3 phase / 60Hz (50Hz available)

Start, stop, reset controls

Service & Certifications:

Class 1 / Group D / Division 1

UL / CSA

Hydraulic Specifications:

Open loop

2,000 psi Normal working pressure

2,500 psi Intermittent duty working pressure

Wire Pull & Line Speed:

3,800lbs Max wire pull

1,250 fpm

Manual level wind
