Upright Surveyor Unit

---

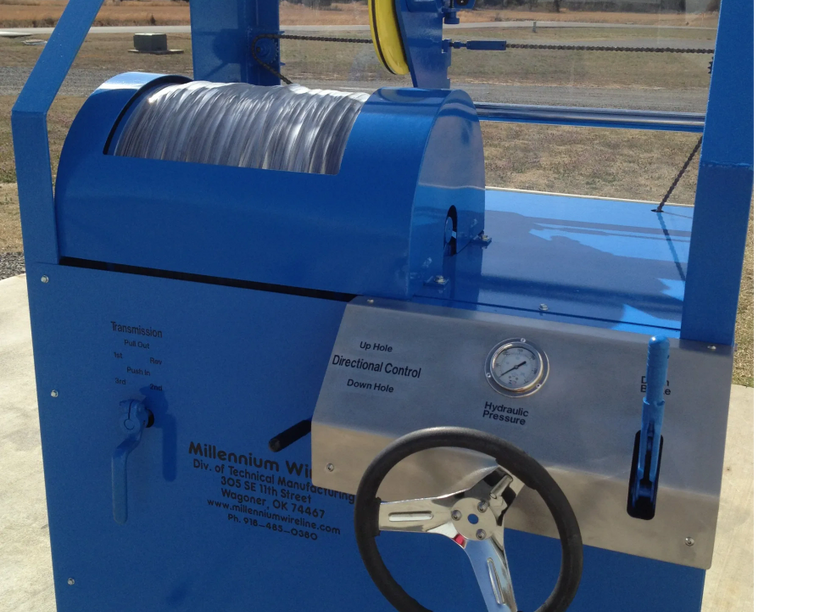

 The Upright Surveyor Unit is a work horse on our customers Drilling Rigs. While similar in design to our smaller units, it has much more line capacity as well as increased horsepower giving more pulling power and greater line speeds.  This is a high-performance unit that will get the job done.  It is powered by external hydraulic power source.

 Drum Capacity:

15,000 ft - .125"

20,000 ft - .108"

25,000 ft - .092"

Drum Material:

Non-cast all steel

Brake Assembly & Control:

Dual wide band

Operator adjustable handle

Drive Assembly & Transmission:

Chain & sprocket with tensioner

Three speeds with reverse

Power Drive & Supply:

20 hp 460 volt / 3 phase / 60 Hz (50Hz available)

Service & Certifications:

Class 1 / Group D / Division 1

UL / CSA

Hydraulics:

Open Loop

2,000 psi Normal working pressure

Speed control

Maximum Wire Pull & Speed:

3,800lbs

1,250 fpm
